| RD-9# 1000 KG Specifications | |
|---|---|
| Load capacity | 1000KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour | Gray white / Sand blue / Customizable |
| Specifications | L: 1200 / 1500 / 2000 mm W: 450 / 600 mm H: 2000 / 2500 mm |
| Freight Info | The generated transportation costs on the page significantly differ from the actual transportation costs. You can contact our customer service department with the product model, specifications, quantity, and delivery address to obtain an accurate shipping quote. If you have a Chinese freight agent, we can provide container loading and short-term storage services. |
| Load / KG | Laminate thickness | Column specification | Crossbeam specifications |
|---|---|---|---|
| 100KG | 0.30 mm | 50*25*0.5 mm | 50*30*0.5 mm |
| 200KG | 0.35 mm | 70*35*0.7 mm | 60*35*0.6 mm |
| 300KG | 0.50 mm | 60*30*1.0 mm | 70*33*1.0 mm |
| 600KG | 0.50 mm | 70*33*1.4 mm | 70*35*1.2 mm |
In order to have a better understanding of our product, please allow us to remind you with following three tips:
A: Yes, our standard configurations come with 4 layers, but we can customize the number of layers according to your specific storage requirements.

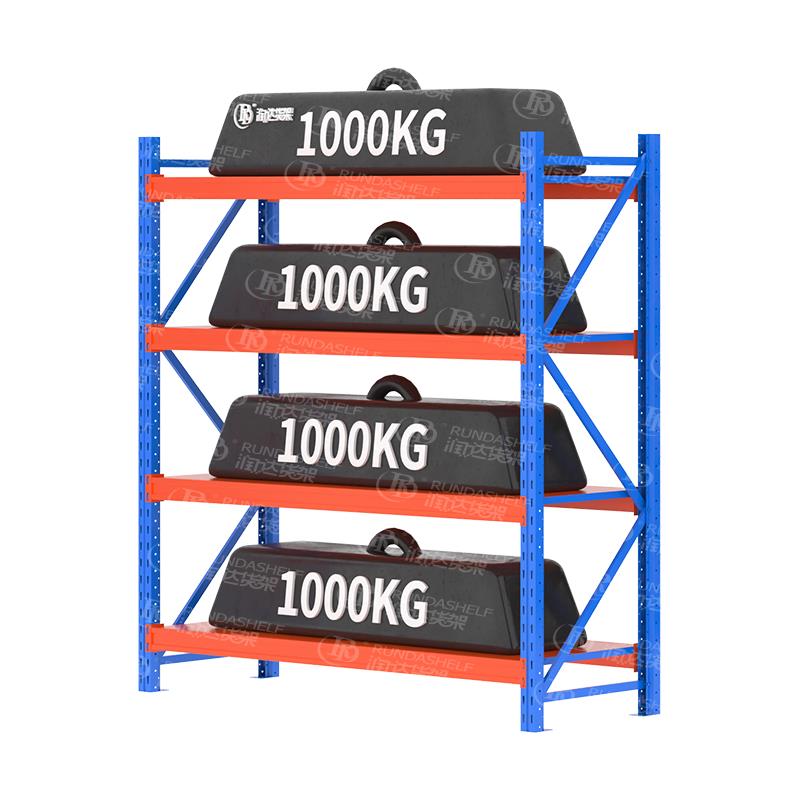

A: The RD-9# model supports a load capacity of up to 1000 KG per layer under standard load configurations.
A: The page-generated shipping costs are rough estimates. To get an accurate quote, please contact our customer service team with your product model, specifications, quantity, and delivery address.
A: Yes, if you have a Chinese freight agent, we can provide professional container loading and short-term warehouse storage services.
A: We offer customized designs for various storage structures, including warehouse racks, supermarket shelves, mezzanine racks, and mobile growing frames.
A: Column specifications range from 50*25*0.5 mm up to 70*33*1.4 mm, while crossbeams range from 50*30*0.5 mm up to 70*35*1.2 mm depending on load capacity requirements.
